T-Links
(Click on thumbnail to enlarge)

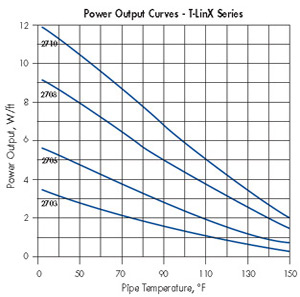

Performance Ratings
Output wattage:
3, 5, 8, 10 w/ft at 50°F (10°C)
9, 15, 26, 32 w/meter
Supply Voltage:
110 - 120 or 208V - 277Vac
Continuous maintenance temperature:
150°F (65°C)
Maximum exposure temperature:
185°F (85°C)
Approvals/Certifications
T-Links
120 Volts, 240 Volts
3 ,5, 8,10 Watts/Ft @ 50°F
Listed:
Pipe Heating Cable, Industrial and
Commercial
De-Icing and Snowmelting
Equipment

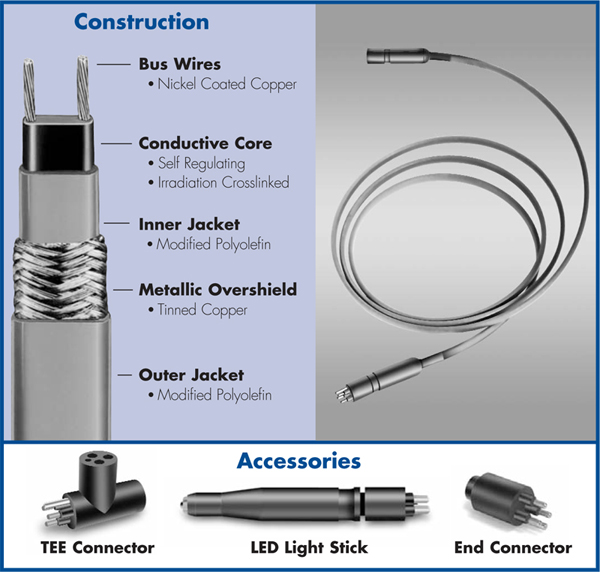

Description
The T-Link series of self-regulating heating cable is designed to supply a specified amount of heat at any point along its length in direct response to local temperature/thermo-dynamic variations. These Heat Trace Products, LLC. cables were developed to simplify the installation of heat tracing systems. T-Link heating cable runs are preterminated for ease of connectivity and installation. All components in the system are waterproof to insure long life at connection and termination points.
View the T-Link Heating Cable Brochure
120 Volt Breaker Sizing vs. Max Circuit length (FT)
| 15A | 20A | 30A | 40A | |
| 2703-1 If started at: 50°F 0°F -20°F |
300 200 180 |
- 270 230 |
- 330 330 |
- - - |
| 2705-1 If started at: 50°F 0°F -20°F |
230 150 130 |
270 200 175 |
- 270 260 |
- - 270 |
| 2708-1 If started at: 50°F 0°F -20°F |
150 95 85 |
200 125 100 |
210 190 170 |
- 210 210 |
| 2710-1 If started at: 50°F 0°F -20°F |
115 70 60 |
150 95 85 |
180 145 120 |
- 180 165 |
240 Volt Breaker Sizing vs. Max Circuit Length (FT)
| 15A | 20A | 30A | 40A | |
| 2703-2 If started at: 50°F 0°F -20°F |
660 410 360 |
- 560 480 |
- 660 660 |
- - - |
| 2705-2 If started at: 50°F 0°F -20°F |
400 300 260 |
540 400 345 |
- 540 520 |
- - 540 |
| 2708-2 If started at: 50°F 0°F -20°F |
295 195 170 |
390 250 225 |
420 375 340 |
- 420 420 |
| 2710-2 If started at: 50°F 0°F -20°F |
230 150 130 |
305 200 175 |
360 300 260 |
- 360 360 |
| T-LINKS - NEW FM APPROVED INDUSTRIAL "T" KIT | ||
| Item Number | Description | Price |
| 120V CABLE PRICE | ||
| SX0310T-000 | Low Temp 3W/Foot | $3.35 |
| SX0510T-000 | Low Temp 5W/Foot | $3.35 |
| SX0810T-000 | Low Temp 8W/Foot | $3.35 |
| SX1010T-000 | Low Temp 10W/Foot | $3.35 |
| 240V CABLE PRICE | ||
| SX0320T-000 | Low Temp 3W/Foot | $3.67 |
| SX0520T-000 | Low Temp 5W/Foot | $3.67 |
| SX0820T-000 | Low Temp 8W/Foot | $3.67 |
| SX1020T-000 | Low Temp 10W/Foot | $3.67 |
| SELECT CONNECTORS | ||
| SK00000-000 | Male/Female Connections | $57.51 |
| SK0000E-000 | End Termination Plug | $12.78 |
| POWER CONNECTOR KITS (6 feet one end unterminated) | ||
| SK0000P-014 | 14 AWG Power Cord | $41.54 |
| SK0000P-012 | 12 AWG Power Cord | $41.54 |
| SK0000P-010 | 10 AWG Power Cord | $41.54 |
| ACCESSORIES | ||
| SK0000T-000 | T-Kit | $36.21 |
| SK0000L-001 | Led Light Stick 120V | $38.34 |
| SK0000L-002 | Led Light Stick 240V | $38.34 |
