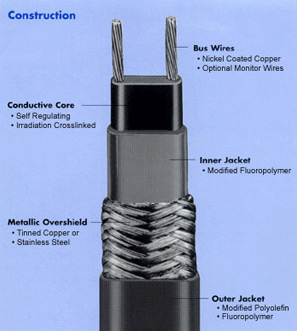

2700 Series Self Regulating Heating Cable (150°F/65°C max)
(Click on thumbnail to enlarge)
The most efficient way to provide freeze protection and temperature maintenance of process fluids is through a properly designed heat maintenance/freeze protection system. Using the Heat Trace Products, LLC., 2700 Series of self-regulating heat trace cable and qualified accessories are designed to provide specified amounts of heat at any point along their length.
The 2700 Series is available in various power ratings, and can be configured for hazardous and nonhazardous applications. In applications classified as hazardous, it can endure exposure to corrosives or organic material, and holds certification for Class I, II, III, Div 1 and 2 locations from both Factory Mutual and CSA. To learn more about the 2700 Series of heat trace cable, and how Heat Trace Products, LLC. can design a system to meet your heating requirements, contact us directly.
Applications
The industrial grade 2700 cables provide freeze protection and process temperature maintenance for fluid transport and storage systems. The bus wires, jackets and metallic braids can be configured for both ordinary (non-classified) and hazardous (classified) locations, including areas where exposure to corrosive or organic materials is possible.
Performance Ratings
Output wattage:
3, 5, 8, 10 w/ft @ 50°F
Supply voltages:
110 - 120 or 208V - 277Vac
Continuous maintenance temperature:
150°F (65°C) max
Intermittent exposure temperature:
185°F (85°C) max
T Rating*:
T-5 (10 w/ft), T-6 (3, 5, 8 w/ft)
Braid resistance:
Tinned copper: 0.003 Ω/ft
Stainless steel:
0.125 Ω/ft *T-Rating per the 1999 NEC, Tables 500-5(d) and verified by FM and CSA.
Approvals/Certifications
Factory Mutual:
Ordinary locations
Hazardous locations Class I, Div 1*/ 2, Groups B, C, D
Class II, Div 2, Groups F, G
Class III, Div 1* and 2
CSA:
Ordinary locations STD. 130-03, -G, -W, -S
Hazardous locations Class I, Div 1* / 2, Groups A,B,C,D
Class II, Div 1* / 2, Groups E, F, G
Class III, Div 1* and 2
UL:
Roof and Gutter
Hot Water Maintenance
SEMCO - (CE mark):
*Contact Heat Trace Products, LLC. representative for information on Division1 hazardous location systems.
- Supply Voltage
- Output Wattage
- 2700 Series Self Regulating Heating Cable
- 110 - 120 or 208V - 277Vac
- 3, 5, 8, 10 w/ft @ 50°F (10°C)
9, 16, 26, 32 w/meter
| Close | ||
| Item Number | HTP P/N | Description |
| 120 Volt Low Temperature 3 Watt 120V | 9 Watts/Meter | |
| 2703-11C00 | SL0311C-000 | 3W Tinned/Copper Braid |
| 2703-11S00 | SL0311S-000 | 3W Stainless Steel Braid |
| 2703-11R00 | SL0311R-000 | 3W Tinned/Copper Braid & TPE Overjacket |
| 2703-11T00 | SL0311T-000 | 3W Tinned/Copper Braid & Fluoropolymer Overjacket |
| 120 Volt Low Temperature 5 Watt 120V | 16 Watts/Meter | |
| 2705-11C00 | SL0511C-000 | 5W Tinned/Copper Braid |
| 2705-11S00 | SL0511S-000 | 5W Stainless Steel Braid |
| 2705-11R00 | SL0511R-000 | 5W Tinned/Copper Braid & TPE Overjacket |
| 2705-11T00 | SL0511T-000 | 5W Tinned/Copper Braid & Fluoropolymer Overjacket |
| 120 Volt Low Temperature 8 Watt 120V | 26 Watts/Meter | |
| 2708-11C00 | SL0811C-000 | 8W Tinned/Copper Braid |
| 2708-11S00 | SL0811S-000 | 8W Stainless Steel Braid |
| 2708-11R00 | SL0811R-000 | 8W Tinned/Copper Braid & TPE Overjacket |
| 2708-11T00 | SL0811T-000 | 8W Tinned/Copper Braid & Fluoropolymer Overjacket |
| 120 Volt Low Temperature 10 Watt 120V | 32 Watts/Meter | |
| 2710-11C00 | SL1011C-000 | 10W Tinned/Copper Braid |
| 2710-11S00 | SL1011S-000 | 10W Stainless Steel Braid |
| 2710-11R00 | SL1011R-000 | 10W Tinned/Copper Braid & TPE Overjacket |
| 2710-11T00 | SL1011T-000 | 10W Tinned/Copper Braid & Fluoropolymer Overjacket |
| 240 Volt Low Temperature 3 Watt 240V | 9 Watts/Meter | |
| 2703-21C00 | SL0321C-000 | 3W Tinned/Copper Braid |
| 2703-21S00 | SL0321S-000 | 3W Stainless Steel Braid |
| 2703-21R00 | SL0321R-000 | 3W Tinned/Copper Braid & TPE Overjacket |
| 2703-21T00 | SL0321T-000 | 3W Tinned/Copper Braid & Fluoropolymer Overjacket |
| 240 Volt Low Temperature 5 Watt 240V | 16 Watts/Meter | |
| 2705-21C00 | SL0521C-000 | 5W Tinned/Copper Braid |
| 2705-21S00 | SL0521S-000 | 5W Stainless Steel Braid |
| 2705-21R00 | SL0521R-000 | 5W Tinned/Copper Braid & TPE Overjacket |
| 2705-21T00 | SL0521T-000 | 5W Tinned/Copper Braid & Fluoropolymer Overjacket |
| 240 Volt Low Temperature 8 Watt 240V | 26 Watts/Meter | |
| 2708-21C00 | SL0821C-000 | 8W Tinned/Copper Braid |
| 2708-21S00 | SL0821S-000 | 8W Stainless Steel Braid |
| 2708-21R00 | SL0821R-000 | 8W Tinned/Copper Braid & TPE Overjacket |
| 2708-21T00 | SL0821T-000 | 8W Tinned/Copper Braid & Fluoropolymer Overjacket |
| 240 Volt Low Temperature 10 Watt 240V | 32 Watts/Meter | |
| 2710-21C00 | SL1021C-000 | 10W Tinned/Copper Braid |
| 2710-21S00 | SL1021S-000 | 10W Stainless Steel Braid |
| 2710-21R00 | SL1021R-000 | 10W Tinned/Copper Braid & TPE Overjacket |
| 2710-21T00 | SL1021T-000 | 10W Tinned/Copper Braid & Fluoropolymer Overjacket |
| Low Temperature With Monitor Wire Class I Div 2 | ||
| 2703-13F00 | SL0313F-000 | 3 Watt 120V |
| 2705-13F00 | SL0513F-000 | 5 Watt 120V |
| 2708-13F00 | SL0813F-000 | 8 Watt 120V |
| 2710-13F00 | SL1013F-000 | 10 Watt 120V |
| 2703-23F00 | SL0323F-000 | 3 Watt 240V |
| 2705-23F00 | SL0523F-000 | 5 Watt 240V |
| 2708-23F00 | SL0823F-000 | 8 Watt 240V |
| 2710-23F00 | SL1023F-000 | 10 Watt 240V |
| 120 Volt Low Temperature Class I Div 1 | ||
| 2703-14T00 | SL0314T-000 | 3 Watt 120V |
| 2705-14T00 | SL0514T-000 | 5 Watt 120V |
| 2708-14T00 | SL0814T-000 | 8 Watt 120V |
| 2710-14T00 | SL1014T-000 | 10 Watt 120V |
| 240 Volt Low Temperature Class I Div 1 | ||
| 2703-24T00 | SL0324T-000 | 3 Watt 240V |
| 2705-24T00 | SL0524T-000 | 5 Watt 240V |
| 2708-24T00 | SL0824T-000 | 8 Watt 240V |
| 2710-24T00 | SL1024T-000 | 10 Watt 240V |
| Roof & Gutter Heating Cables | ||
| 2705-11T00 | SL0511T-000 | 5W 120V Tinned/Copper Braid & Fluoropolymer Overjacket |
| 2705-21T00 | SL0521T-000 | 5W 240V Tinned/Copper Braid & Fluoropolymer Overjacket |
